Product parameters:
Instrument model: YTGDW-408A
Inner box material: USU # 304 mirror stainless steel (thickness 1mm)
Outer box material: Cold rolled steel with spray coating treatment or yarn surface stainless steel (thickness 1.2mm)
Temperature range: -20 ℃~150 ℃
Temperature fluctuation: ± 0.5 ℃
Temperature deviation: ≤± 2 ℃
Heating time: average 3 ℃/min, non-linear no-load, can be customized to non-standard specifications according to requirements
Cooling time: average 1 ℃/min, non-linear no-load, can be customized to non-standard specifications according to requirements
Capacity: 408L
Inner box size (W × H × D): 800 × 600 × 850
Outer box size (W × H × D): 1350 × 1160 × 1810
Refrigeration system: original Taikang compressor, environmentally friendly refrigerants R404A and R23A, finned condenser with heat dissipation evaporator, evaporator: multi-stage automatic load capacity adjustment
Controller system: Original TEM series control system, such as TEMI880 color Chinese English touch condenser or TEMI300 English button controller
Safety protection device: no fuse switch, compressor high voltage, overheating overcurrent protection, overtemperature protection, fan overload protection, dry burning protector, water shortage alarm protection
Standard configuration: 1 observation window (three-layer vacuum insulated glass), 1 Φ 450mm test hole (located on the left side), 1 humidification bucket, 5 test wet cloths
- Product Details
- Product manual

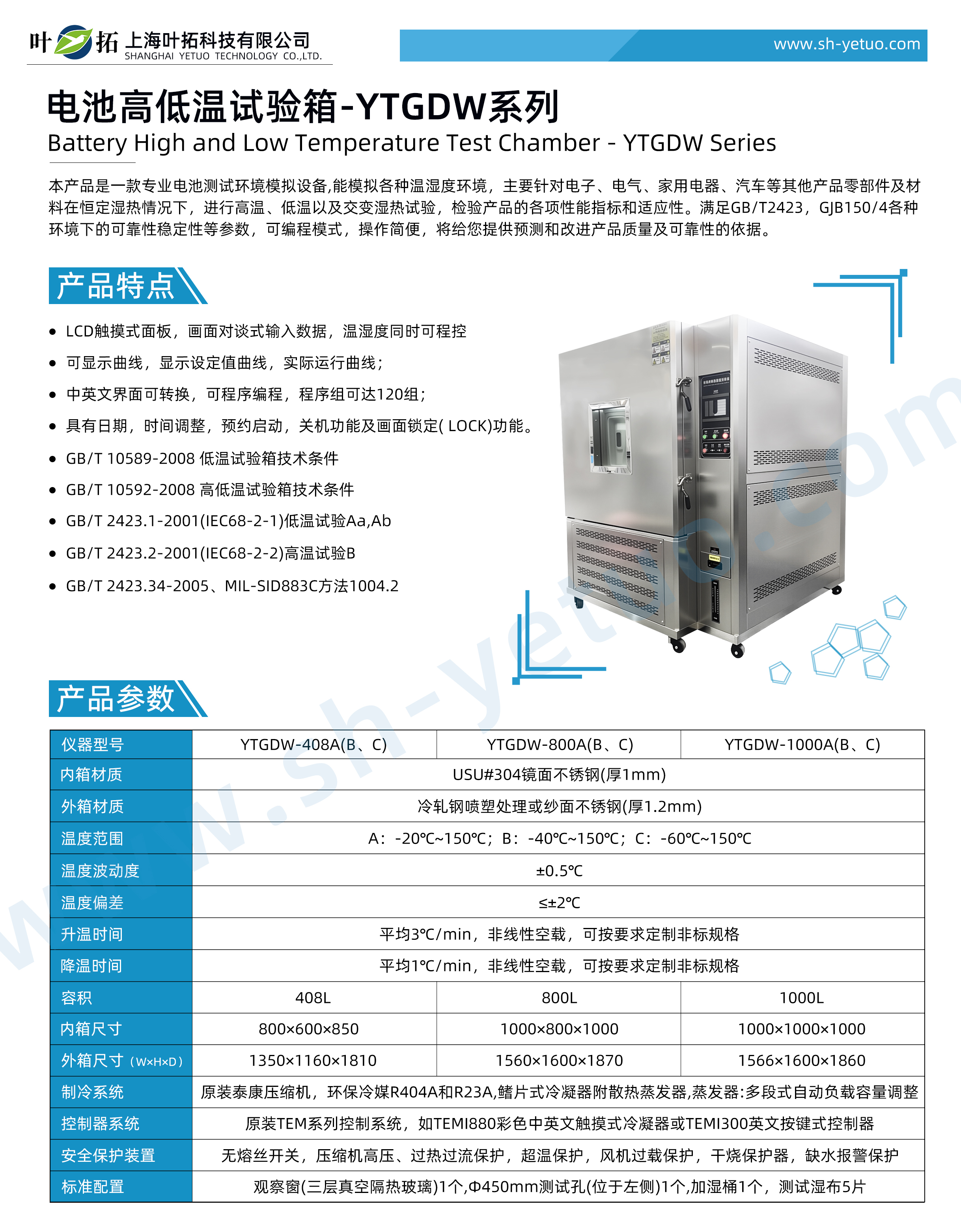

Yetuo YTGDW-408A Battery High and Low Temperature Test Chamber
Model: YTGDW-408A
Product Overview:
This product is a professional battery testing environment simulation device that can simulate various temperature and humidity environments. It is mainly used for conducting high temperature, low temperature, and alternating humidity tests on components and materials of electronic, electrical, household appliances, automobiles, and other products under constant humidity and heat conditions to test the performance indicators and adaptability of the product. Meet the reliability and stability parameters of various environments such as GB/T2423 and GJB150/4, with programmable mode and easy operation, providing you with a basis for predicting and improving product quality and reliability.
Product features of Yetuo YTGDW-408A battery high and low temperature test box
LCD touch panel, face-to-face input data, temperature and humidity can be programmed simultaneously
● Can display curves, display set value curves, and actual operating curves;
The interface is convertible between Chinese and English, programmable, and can have up to 120 program groups;
● It has functions such as date and time adjustment, scheduled startup, shutdown, and screen locking (LOCK).
GB/T 10589-2008 Technical Conditions for Low Temperature Test Chamber
GB/T 10592-2008 Technical Conditions for High and Low Temperature Test Chambers
GB/T 2423.1-2001 (IEC68-2-1) Low temperature test Aa, Ab
GB/T 2423.2-2001 (IEC68-2-2) High temperature test B
GB/T 2423.34-2005, MIL-STD883C Method 1004.2
